The XLSX export will be aligned with what is already done in "Cross tracker XLSX export": each level of sub artifact link will lead to a duplication of lines.

Given the following structure

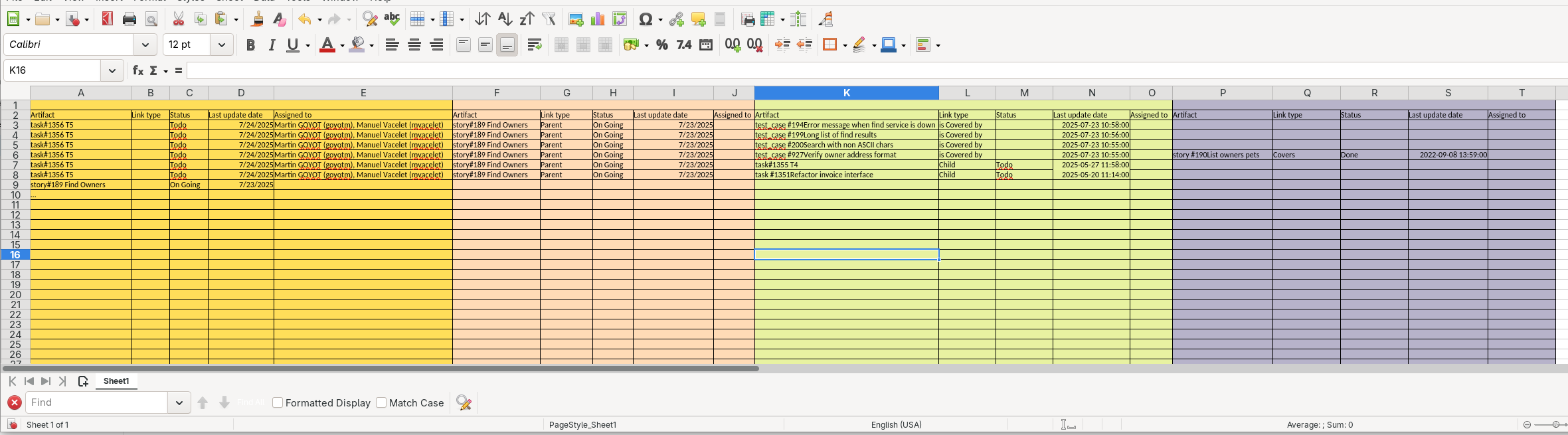

This will lead to this kind of table (without the colors)

The example .xslx is here.

Business rules

• A block of field is the list of fields defined in the SELECT part of the TQL query

• Each expanded level of artifacts will lead to one block of fields

• Given an artifact at level N that have M links at level N-1, there will be M duplication of N block.

  • Example 1:

    • 1 root artifact "dense unit" (level 0)

    • has 2 links (level 1)

      • unreasonable circular

      • straight possession

    • This gives 2 lines in XLSX

      • dense unit - unreasonable circular

      • dense unit - straight possession

  • Example 2:

    • 1 root artifact "dense unit" (level 0)

    • has 2 links (level 1)

      • unreasonable circular

      • straight possession

    • "straight possession" has two links

      • maximum license

      • shocked bike

    • This gives 3 lines

      • dense unit - unreasonable circular

      • dense unit - straight possession - maximum license

      • dense unit - straight possession - shocked bike
